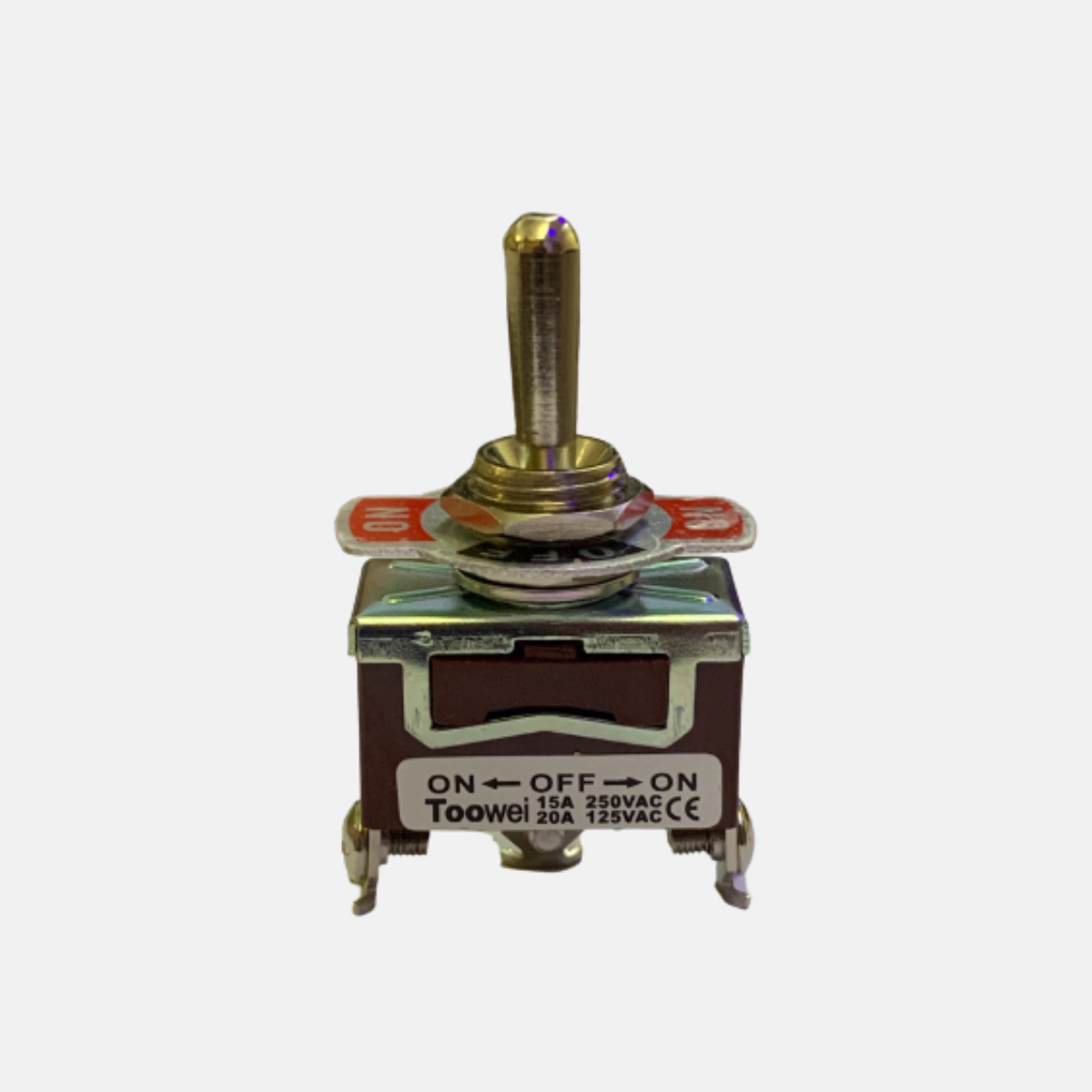

Toggle Switch 3P

Brand : TooWei

Supplied by : Hung Tuan

Country of Origin : China

1. Rating Value: 10A 250VAC/15A 125VAC

2. Operating Force: 8N-24N

3. Ambient temperature: -25℃~+85℃

4. Withstand voltage： 1500VAC 50/60hz Leakage current：5mA

5. Insulation resistance ≥100mΩ Contact resistance ≤ 50mΩ

6. Electrical life： 20,000 times Mechanical life: 50,000 times

7. Humidity： below 85% RH

8. Terminal form : Soldering terminal Solderable soldering iron: 345±5° 1~2S Solder resistance soldering iron：345±5° 3~5S
